Digital DIY – Part 1

How Symbiosis use Digital Technology to make their Music

Clive Williamson spent several years as a BBC sound engineer, radio producer and computer journalist before he plucked up the courage to make his own albums, starting the group Symbiosis in 1988. Since then he has successfully fused computer technology and studio techniques with real instruments to make highly atmospheric and haunting ambient music for album release and for broadcast. Clive has never had any formal musical training, and readily acknowledges the part that technology has played in enabling him to create music alongside the other ‘real musicians’ in Symbiosis. An expert in the technology of music, he is now keen to help others get to grips with what computers can offer in the studio, from recording and mastering sound through to marketing and album cover design. (This article originally appeared in Sound on Sound, July 1996)

Digital technology has been at the heart of most home-based and professional recording studios for about 10 years now, but only recently has it become feasible to carry out every stage of making an album with help from one or more computers. In this two-part article, I’ll be looking at the way computer technology has helped our group Symbiosis to improve the scope of our writing and the sound of our recordings; to master our own CDs; and to develop a distinctive album cover style.

The long-term potential of computers in music is enormous. They can offer creative freedom, ways to fine-tune a performance and – eventually – financial savings too! The rewards are great, but the path to achieving this is often a difficult one. Things don’t always work as they should, and computers have a way of dominating the proceedings as soon as they are switched on. The falling cost of hi-tech equipment has brought many exciting tools into the price-range of the average musician, but it can be a time-consuming and frustrating business to learn how to use them. Hopefully, describing our experiences will be helpful to SOS readers who are expanding their own use of computers in the studio environment, both in terms of avoiding headaches and discovering new ideas and techniques.

Richard Bolton, Clive Williamson, John Hackett & Ashley Drees of Symbiosis

Analogue Days

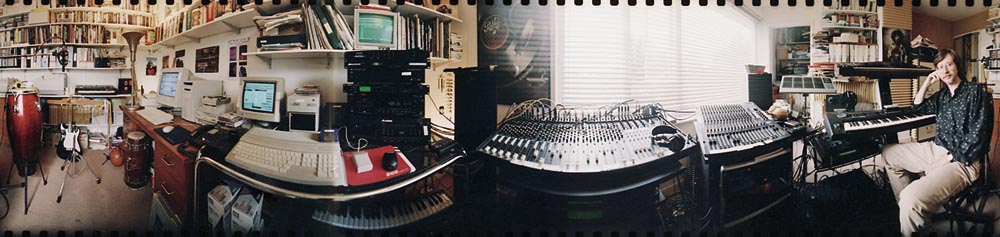

To put the development of our Digital DIY into context, I’d better start with a little group history! When we began Symbiosis, we needed to record concert flute played by John Hackett; acoustic, electric, and STEPP guitars from Richard Bolton; and my own voice, ethnic flutes, and hand percussion. Much of what we do is ‘ambient’ music in the true (Eno) sense of the word, so these natural instruments were blended with atmospheric soundscapes and sampled percussion from synth keyboards. The studio – started in an office at home – underwent a rapid organic growth process as I learned about MIDI. We moved quickly from a borrowed Tascam Porta 2 four-track cassette to a Fostex M80 eight-track linked via a SMPTE timecode stripe and a synchronising unit to an Atari 1040 STFM computer system running C-LAB’s Notator sequencing software. Pieces were mastered onto a Revox A77 from a Seck 18-8-2 desk, and as the synth and digital effects collection grew, we bolted on an Alesis 1622 mixer for extra inputs. After the first two albums (Tears of the Moon and Song of the Peach Tree Spring) we moved to digital mastering on a number of portable DAT recorders before finally settling on a Sony DTC1000ES modified for 44.1 kHz operation by HHB Communications. This DAT recorder also served to back up early experiments on Digidesign’s Soundtools system on a Mac IIcx.

Live instruments have always been a vital part of our sound, and although the M80 multi-track recorded acoustic and electric guitars well, and could manage the odd fretless bass, it really struggled with wind instruments like flutes, oboe and cor anglais. Their sustained, pure waveforms with hardly any harmonics often triggered an uncomfortable low grinding noise called bias bubble, and this was especially problematic in our gentlest, most ambient work, so I began to look for digital alternatives. As an interim measure, we improvised direct to DAT, editing the recordings in Sound Designer II on the Mac, then adding effects at the mix-down stage. But we soon tired of playing solos and duets, and it was then that the Alesis ADAT system came along and saved the day!

The Move to Digital
ADAT was a major turning point in terms of our studio sound quality, and really stirred things up in many different ways. Here at last were perfect drop-ins, longer recording times, the possibility of making digital clones as backups or for alternative takes and – of course – great sound. Its clean recordings were a real joy, but soon began to highlight weak areas in studio acoustics and monitoring, revealing with perfect fidelity all the hiss, thumps, breathing, rumble and ambient noise that had been masked previously by the relatively high noise-floor and distortions offered by analogue tape. When I produced the series “The Science of Sound” for Radio 4 FM in 1990, I discovered that the BBC’s Research Department at Kingswood Warren was already studying the problems created by the wide inherent dynamic range of digital recordings. There, they were looking at ways of reducing structural noise by improving ventilation systems and door seals, suspending floors, and isolating walls. Back in the Symbiosis studio we had to make do with careful microphone placement, closing the double glazing, disconnecting the phone, and never recording during the rush hour or when Concorde was due to fly over!

John Hackett plays in the BBC’s Anechoic Chamber at Kingswood Warren

The most immediate effect of introducing the ADAT was to make me much more aware of the sound quality of all the components in the recording chain. Fortunately the mics were well up to the task: an old AKG C414 EB still sounded great on acoustic guitar and voice; and a newer C460 with a hyper-cardioid capsule was clean and noise-free for recording a full flute sound without too much of the room’s acoustics. The Seck and Alesis mixers had minimal EQ, but perfectly acceptable sound quality. The weakest links turned out to be:

1) The sound of the recording room.
2) Our monitor speakers (an old pair of IMF ALS 40’s).
3) High frequency losses in a long loom between the Seck mixer and the ADAT.

My engineering method in the Symbiosis studio has always been to record the instruments as cleanly as possible and to add acoustics from good-sounding digital reverb units like the Microverb II and Quadraverb on monitor headphones, and later in the mix. The ADAT recordings made it clear that there were far too many HF reflections in our 13 feet square room, colouring the sounds of some natural instruments before they even reached the digital effects. I began to develop an obsession for acoustic tiles, which was eventually cured by an order placed with USAFoam in Indianapolis for 16 sheets of 2 feet by 4 feet wedged foam acoustic absorbers. These were chopped up with one of those crucial wedding presents – an electric carving knife – and velcroed round all the available wall space to reduce high frequency ringing and spurious reflections.

Studio monitoring was also improved by the foam tiles, but I felt we could go much further, so I embarked on a series of exhaustive listening tests, which ended when I heard a pair of the Professional Monitor Company’s AB1 loudspeakers. After the ADAT, these are definitely the best things we’ve bought for the studio, with their extended but not overbearing transmission line bass response, crisp but smooth top end, realistic voice quality and useful lack of directionality, giving a good stereo image over a wide listening area. They have a neutrality which some might find alarming, but mixes on these speakers seem to sound superb on most other equipment. Room acoustics and speakers dealt with, that just left the loom problems to be sorted out.

In Part 2… How to use computers to master CDs and design album covers

Making the Right Connections
One of the most exciting developments in music technology in recent months has been the shift towards fully digital mixing desks, lead by the Yamaha 02R, but I realised that we couldn’t possibly justify buying one, so I started to look for cheaper ways to uphold quality in the Symbiosis recording set-up. Going digital as soon as possible in the recording chain – and staying digital – seemed to be the order of the day, and the release of the Alesis QuadraVerb2 reverb provided the perfect answer: and solved our loom problems at the same time.

Besides offering really clean reverb and effects, Q2 was designed from the start to link in digitally with the ADAT. Our current recording set-up (see Fig.1) uses short-as-possible audiophile hi-fi cables between the Seck 18-8-2’s Track 1 and 2 outputs and the Q2, and a direct optical link from the Q2 to the ADAT. Once the recorder is switched to DIGITAL IN, the Q2 in bypass mode (Preset 99) acts as a switching matrix to any two of the eight available tracks, and the analogue signal only has to travel down one metre of high quality cable!

Recordings made this way sound much sweeter, and clearer at the top end, with the bonus that the Q2’s settings can be edited to provide instant digital EQ on recordings. Used as a high-pass filter, low frequency rumble can be rolled off before it gets to the ADAT, and much more precisely than with the low filters built into our AKG mics. Q2 can also store a range of ‘instant EQs’ for any instrument regularly used by the group. Major equalisation changes are still left for the final mix, but the results going to tape are much more controlled. (Its a shame that the Q2 doesn’t have any compression or peak limiting functions to prevent accidental clipping, but you can’t have everything, I suppose.) Results through the mixing desk were further enhanced by throwing out our old 16-way loom altogether, and making up short-run good quality cables to get signals back from the ADAT’s outputs to the desk.

ADAT to ADAT XT?
Another important reason for getting a Q2 reverb was its ability to act as a digital router for track-bouncing on the ADAT without the greater expense of buying a BRC. The unit is relatively easy to use in this way with a single ADAT recorder, needing only a two-way optical link to be established (see Fig.2). The Q2 must act as the clock source for the ADAT, which is achieved by the following switching sequence:

1) Set Q2 to Preset 99 ‘Bypass’ and make sure the direct signal is ON (Global menu)
2) Set Q2 to Analogue Input and clock source to Internal (Global menu)
3) Set ADAT to Digital In
4) While in ‘Play’, set ADAT to external digital clock (Set Locate + Digital In)
5) Alter Q2 to Optical Input (Global menu)
6) Select incoming and outgoing tracks for ADAT on Q2 Global Menu

Once this is done, you can bounce signals from track to track with no loss, one or two at a time. You can also choose any Q2 patch to add EQ, effects, or delay during the bounce. It’s important to know that the Q2’s meters only display anything sourced from channels 1 and 2 when used this way, so it’s best to look at the ADAT’s input metering to check things are working properly. Anyone owning the newer ADAT XT won’t be so interested in these features, but for the 1000’s of original ADAT users, the Q2 really is a sensible upgrade, especially as it’s A to D converters are better than the first generation ADAT’s (being 18 bit and 128x oversampling).

Digital Building Blocks
Once the ADAT was transplanted in as the new heart of our studio, other useful directions emerged. We added an Alesis AI-1 digital interface and sample rate converter to allow sound to be transferred digitally from any source, or moved between the eight-track and Sound Designer II software via an AudioMedia II card on the Mac. This instantly gave us the freedom to improvise onto the ADAT, then edit two adjacent tracks in Sound Designer, pass them back digitally and use that as the starting point for new pieces. The best example of this is John Hackett’s tune ‘The Golden Temple’ on our CD Autumn Days, which was assembled from six takes of bamboo flute and darabukke drum, then passed back to the ADAT to have cymbals, frame drums and jingles added before mixdown. Nowadays, neither John nor I can remember where the edits were! Used this way, Digidesign’s software often reverts to its original function – that of sample editor – giving us the chance to alter pitch, edit, blend and even turn sound round without any quality loss. Interestingly, it has proved possible to use the AI-1’s sample rate conversion facility over a very wide range, and signals fed out of the AudioMedia II at a playback rate as low as 1kHz (a drop of over 5 octaves!) are still converted to 48kHz on the ADAT without any problems.

AudioMedia’s coaxial S/PDIF outputs have proved useful for interfacing directly with equipment such as DAT recorders and a Roland S760 sampler with the OP-760-1 output board fitted, and also with another handy building block in the Symbiosis digital studio: a Cambridge Audio DACMagic 1. This is actually a hi-fi component offering a very good quality digital to analogue converter at a reasonable price (it’s available from the Richer Sounds chain of shops for under £200) with three switchable co-axial inputs, one co-axial digital output and line outputs from the D to As on both phonos and canon sockets. We use DACMagic as digital signal router and listening point, saving lots of re-plugging and augmenting by two the existing four separate outputs from the excellent S760. One of the two extra digital outputs from the 760’s I/O board is permanently plugged to a DACMagic input, and the D to A outputs appear on two channels of the mixing desk (see Fig.3).

The final elements in our digital studio are a JL Cooper SyncMaster (for synchronising the Mac to SMPTE timecode), a JL Cooper dataMASTER (which generates SMPTE from the ADAT without wasting a track to record it) and a Sony DTC-A8 DAT machine, replacing our DTC1000ES. All our music is now mastered onto the A8 using its Super Bit Mapping option, which seems to impart a richer, ‘firmer’ quality to the work, and provides a much better sense of space at low listening levels. As we bought one of the first A8s in the country, even HHB didn’t know that the machine suffered from the dreaded SCMS (Serial Copy Management System), but copies can still be made via the digital inputs of AudioMedia or the AI-1, both of which strip off the copy-protection flag set in S/PDIF signals! I should also mention that I’ve also upgraded the Mac IIcx to a PowerPC 8100 / 80 with a 1 gigabyte AV hard drive to cope with digital image handling for album cover design (more about this next month), and we have recently obtained OSC’s Deck II and E-Magic’s Logic Audio in the hope of further integrating MIDI recording with hard disc editing and mixing.

Digital Instruments – a Changing Perspective
One of the major bonuses of combining real instruments and MIDI gear in our original analogue studio was that most of the sound sources went through the desk ‘live’ at mixdown. So it was relatively easy to master tracks to a very high standard. Happily this has not escaped reviewers of our music, who have often commented on the technical merits of our albums as well as the musical ones! Nowadays, wearing my ill-fitting, but still hyper-critical ‘BBC engineer’ hat, I can acknowledge that, in truth, the ‘natural’ instruments recorded to analogue tape were only just OK, and were in effect ‘carried’ by the quality of the MIDI-sourced sounds around them. Now we are working with the clarity of digital recordings on the ADAT and better reverbs like the Q2, the reverse is happening! Some of the old synthesisers are being shown up by their quantising noise, or lack of high frequency sparkle. (I’m thinking now of our much-loved D550 and TX7 modules, and even the Korg M1R.) We’ve had the chance to try the Alesis QuadraSynth Plus Piano, the Yamaha VL7 and the Roland JV1080, all of which really do ‘shine’ in a mix, but I can’t help wishing that more instrument manufacturers had followed Alesis’s lead and begun to put digital outputs on their products sooner. After all, somewhere inside those little black boxes the sounds are there in digital form, and in a few years – when we’re all using digital consoles – I bet we’ll all be sorry!

Creativity & the Digital Studio
So far I’ve said a lot about the technical side of developing and using a digitally based studio. But what about the creative aspects of using new technology? Well, to me it’s a curious mixture of good and evil. Recording studios have always been places where things can go horribly wrong, wasting precious time and money, and the more complex we make them – with MIDI and digital connections – the more frustrating the problems can become. We’re trying to link pieces of equipment from so many different manufacturers to make them do something new and wonderful with sound, only to discover that often the system doesn’t work as it should, and no-one can tell us why! But despite the hassles, I certainly couldn’t live without the enormous palette of sounds; the quality of ADAT recordings; the creative possibilities of hard disk editing and the relative ease of use of many of the studio’s components. Above all, the Symbiosis studio is always there to catch the mood for making music, day or night, instead of having to hire a studio, book the musicians and an engineer, lug the gear, and then put in a world-class performance when someone else says so. And the results that come out of it are ready to turn straight into an album!

I suppose a major snag with today’s technology is that it develops so fast that there is barely enough time to assimilate the possibilities offered – and the techniques required – by one bit of gear before we have to move on to the next. (Music technology must be the most obvious manifestation of the devil in consumer society since the car, but I love it anyway!) The only answer seems to be to alternate technical ‘learning and editing’ sessions with creative ‘writing and recording’ ones, so that the frustrations of the former don’t taint the exciting potential of the latter! Above all, we need to test equipment well before we buy it, and make sure that we can work easily and intuitively with it.

In the course of my work with the BBC I’ve had the chance to talk to a number of luminaries of the music technology scene, and two thoughts stand out Wendy Carlos once invaluably told me about building a MIDI studio to “Keep it simple, Clive!”, while Bob Moog, who is convinced (and I think rightly) that computers are the most important thing to happen to musicians since the invention of cat-gut for the violin, has give me the most useful advice about the potential offered by today’s technology. “Everybody has certain reservations about how easy it is now – not to make good music – but to make pale imitations of music. One always has to remember where the garbage pail is,” he says, “because it’s so easy to make sounds, and put sounds together into something that appears to be music. But it’s just as hard as it always was to make good music. Making good music is an essentially human activity, and it’s not easy! It takes talent!”

In Part 2, Clive Williamson describes the processes of preparing a CD master, burning CD-Recordables and designing album sleeves for Symbiosis with the help of computers.
_________________________________________________________________________
SYMBIOSIS STUDIO TIPS:
Personalize Your Music
– We’re all using the same synthesisers, so…
– Don’t just use your synthesiser’s presets! Collect the largest palette of sounds possible, and create or edit your own voices for your instruments.
– Don’t restrict yourself to a five octave keyboard – get a larger one, transpose, or tie two together through a sequencer.
– Use keyboards and drum pads with a sensitive velocity response, and if necessary use your sequencer to edit the response to suit you!

Getting the best from Digital Effects
– Acoustics can have a tremendous influence on how we play…
– Try adding your own effects to MIDI instruments, even if the sounds have them built in.
– Make notes of reverb and effects settings for live players, so you can re-create the space they heard whilst recording when you do the final mix, to make full sense of their performance.
– Edit digital effects specially to suit your work, and individual pieces.
– Commit complex sounds to tape, so as not to loose the special quality that you fiddled with for hours to get. (Thanks to Nick Magnus for reminding me of this one!)
– Be aware that digital effects often sound very different in mono, so check their mono/stereo compatibility.
– Remember that most effects units can be controlled by MIDI during mixdown!

Avoid Loosing the human quality in your work
– Digitally generated sound can have a sterility which tires the ear, so…
– Take care when using sampled sounds, especially in loops or as the lead line.
– Remember that many synthesisers have a greater variety of tone and modulation than samplers, and session players – especially percussionists – can add even more ‘human touch’.
– Make full use of MIDI Controllers – Mod Wheels, Aftertouch, MIDI Volume.
– Use more expressive synths (especially a wind synth with breath control)
– A well set up MIDI-based studio can have few variables, so try to look for ‘happy accidents’ while you work.
_______________________________________________________________________
DIGITAL TIPS
– Always master at the final sampling rate for the product (e.g. 44.1kHz for an Audio CD, 48kHz for a mix to be transferred to ADAT)
– As digital systems become more complex, you need to develop ‘Clock Awareness’. (i.e. Know which equipment should generate the master digital clock, and which should slave to it – horrible clicks or the ADAT changing speed are signs that you’ve got it wrong!)
– Watch for equipment noise build-up when making multi-track mic recordings near a Hard Disk or computer-based system.
– Check your mixes on headphones if you think equipment noise in the mixing area might be masking low-level problems.
– Always back up your computer work.
– Try creating a MIDI backing mix on two tracks, then record instruments elsewhere, using ‘real’ acoustics.
– With prices falling all the time, choose carefully when you buy, and only spend money on the things you absolutely need.
– Consider hiring equipment, co-owning or exchange hire with friends.
– Register your software and hardware for up-to-date support and upgrades.
– Get as much personal tuition in the technology as possible from friends and manufacturers.
